Vediamo qui un chopper Dave Frisco style speciale realizzato da Dave in California, una moto dove l’alluminio la fa da padrone ed è in bella vista dandole uno stile sincero e ben definito.
L’obiettivo di Dave è stato quello di realizzare una custom Frisco che fosse snella, veloce, leggera e maneggevole.
Per la costruzione di questa special sono stati utilizzati componenti S&S che in pratica ha commissionato il lavoro, e molti altri componenti sono stati realizzati a mano dai customizzatori come il bellissimo serbatoio con la scritta e il logo in rilievo.

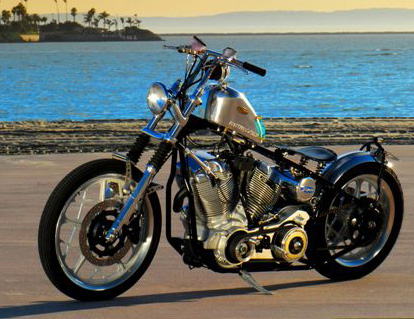

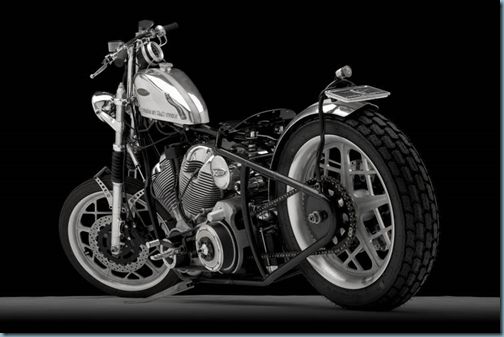

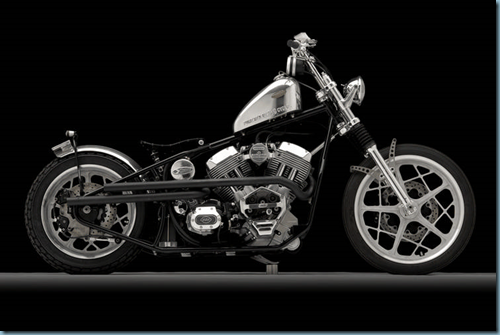

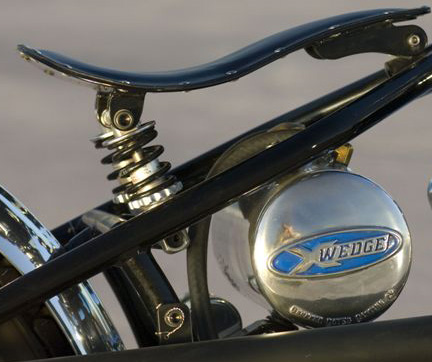

Vediamo dalle foto sotto alcuni dettagli che denotano la qualità eccellente del lavoro, alla fine il risultato è una moto che è un mix di elementi tipicamente old school, combinati con la tecnologia più avanzata di S & S, un effetto minimalista e moderno allo stesso tempo…
English version: We see here a chopper Dave Frisco style special by Dave in California, a motorcycle where aluminum is the master and is in plain sight giving it a style sincere and well-defined. The objective of Dave was to provide a custom Frisco that was leaner, fast, light and handy. For the construction of this special components have been used S & S which in practice has commissioned the work, and many other components were handmade by customizers such as the beautiful reservoir with the inscription and logo in relief. We see from the photos below some details that show the excellent quality of the work, the end result is a bike that is a mix of typical old school, combined with the most advanced technology of S & S, a minimalist effect and modern at the same time…
Eccovi i dati tecnici:
Motore
Year/Size 2007 117ci
Type X-Wedge
Builder s&s
Cases s&s
Flywheels s&s
Rods s&s
Pistons s&s
Cylinders s&s
Heads s&s
Bore 4.125″
Stroke 4.375″
Compression 9.75 to 1
Valves s&s
Rockers s&s
Rocker Boxes s&s
Pushrods s&s
Pushrods Tubes s&s
Cam(s) s&s
Lifters s&s
Carbureter s&s variable fuel injection
Air Cleaner chopperdaves race only prototype
Ignition s&s
Exhaust chopperdave
Finish s&s stardust finish
Special cut out cam cover
Trasmissione
Builder/Year/Type s&s 2007 6 speed
Finish stardust finish
Case s&s
Top/Side Covers s&s, hydraulic
Clutch Rivera Primo pro clutch w/ Brembo MC
Primary Drive Rivera Primo slimline
Final Drive Sundance chain
Front Sprockets Teeth 24
Rear Sprockets Teeth 48
Special shaved inner primary
Accessori
Front Fender fab kevin fork brace only
Rear Fender polish alum front street cycle
Fender Struts chopperdave

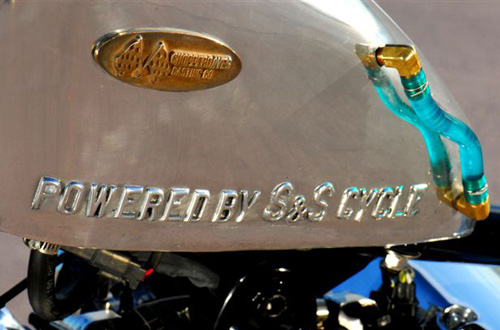

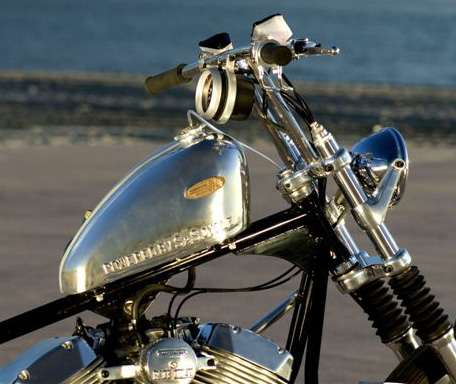

Gas Tank(s)&Cap(s) chopperdave cast “powered by s&s” tank w/ bronze badges
Oil Tank chopperdave x-wedge tank
Dash none
Speed O none

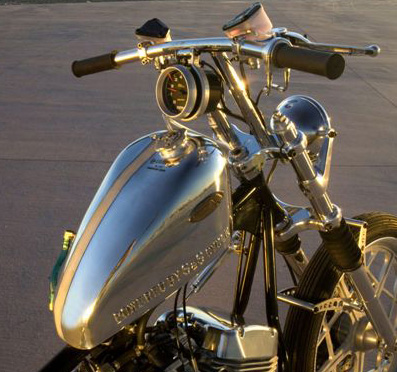

Gauges autometer race tach
Handlebars chopperdave
Risers chopperdave
Mirrors none
Grips harley davidson

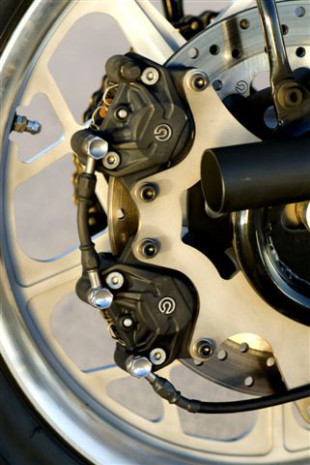

Hand Controls brembo radial mc’s
Foot Controls chopperdave
Footpegs chopperdave “secret weapon”
Headlight bates
